Indian Unmanned Aerial Vehicles Developments

Gautam

Staff member
Moderator
Feb 16, 2019
15,025
15,827
Tripura, NE, India
IDEX challenge under the IAF for remotely piloted aerial vehicle to be used for ordinance delivery was won by a very young start up. This is their product, they seem to be prototyping it now.

Screenshot (512).png
Screenshot (513).png
Screenshot (514).pngScreenshot (515).pngScreenshot (516).pngScreenshot (517).pngScreenshot (518).pngScreenshot (519).pngScreenshot (520).pngScreenshot (521).png

The deployment plan and planned capabilities are great. Hear it from the guy :


The last picture makes me imagine things. Imagine this launcher on a small patrol boat, with proper training and situational awareness, the Navy can wreak havoc with this. Good stuff from the start up, hope they succeed.

@Ashwin @nair @randomradio @_Anonymous_ @vingensys @BMD @hellbent et al.

I can't be sure but there was am internal competition between various engineering/research institutes to win a DRDO funded competition for a flapping wing mini/micro drone or a "ornithopter". Many renowned institutes participated including :

National Design & Research Forum with their "300MM FLAPPER" in the mini drone category :
and the "125MM FLAPPING WING MAV" in the micro drone category :

IIT Madras and a few other institutes designed the following :
Screenshot (677).png
Screenshot (678).png
Screenshot (679).png

The idea was to use the same basic airframe for both the micro and mini drones with just a difference in scale and internal mechanics. The mini drone was to use this mechanism :
Screenshot (680).png

.........and the micro was to use this :
Screenshot (681).png

IIT-Kanpur won the competition and DRDO's funding for the project with the following designs :

This one is called the MAV :

And this is the "Cleo" :


Some videos of MAV :




Of Cleo including earlier models :



Check his youtube channel for more videos. The best thing(for me) is that the guy designing the drones is from my state. I can tell from the language. This just makes me so happy.:)

@Ashwin @nair @randomradio @_Anonymous_ @vingensys @BMD @hellbent et al.

I can't be sure but there was am internal competition between various engineering/research institutes to win a DRDO funded competition for a flapping wing mini/micro drone or a "ornithopter". Many renowned institutes participated including :

National Design & Research Forum with their "300MM FLAPPER" in the mini drone category :
View attachment 12954
View attachment 12955
and the "125MM FLAPPING WING MAV" in the micro drone category :
View attachment 12956

IIT Madras and a few other institutes designed the following :
View attachment 12962
View attachment 12961
View attachment 12960

The idea was to use the same basic airframe for both the micro and mini drones with just a difference in scale and internal mechanics. The mini drone was to use this mechanism :
View attachment 12959

.........and the micro was to use this :
View attachment 12958

IIT-Kanpur won the competition and DRDO's funding for the project with the following designs :

This one is called the MAV :
View attachment 12963

And this is the "Cleo" :
View attachment 12910

Some videos of MAV :




Of Cleo including earlier models :



Check his youtube channel for more videos. The best thing(for me) is that the guy designing the drones is from my state. I can tell from the language. This just makes me so happy.:)

Nice work to collect and post it

I knew about this flapping wing thing ( blue colour) , it's is many years olds
I think you will find it in the iitk website where they had the glider torpedo plus PDFs released over the years.

But the others you posted are new to me

I suspect over the years the design grew in maturity and now being exploited for real life use

@Gautam

If possible try to find info on "hybrid air water ballistic missile" project
It was under preliminary research stage when i found about it

But have no clue to actually what it is , i sudpect it is under PMO same as exoskeleton which was on the list also

@Gautam

If possible try to find info on "hybrid air water ballistic missile" project
It was under preliminary research stage when i found about it

But have no clue to actually what it is , i sudpect it is under PMO same as exoskeleton which was on the list also
Which institute was developing it ?

Which institute was developing it ?

No idea

It was clubbed under advance projects like
Exoskeleton
Powered jetpack
Blue laser communications
Quantum communications
Quantum encryption
Etc
Etc

All of these afaik are now under direct PMO control , there was a rejig few months back where among other posts , one post under NSA was created to acquire futuristic technologies or something to that effect

Remember HAL-IIT Kanpur's helicopter drone flown on 3rd Aug 2018 :


The press release said : The RUAV has a 2-stroke petrol engine, twin blade main rotor and tail rotor, payload capability of 2.5Kg including live stream video camera and range of the vehicle is 8-10 Km with an endurance of one hour.


The project has been on for a few years. Some early photos :

Engine test :

Rotor hub design :

Assembled main rotor :

Early full prototype :

After some modifications :

It was sent to Leh for high altitude cold weather testing :

IIT-K has recently purchased a helo drone from Japanese company Hirobo then they stripped it apart, they seem to be experimenting with it to see what is already available in the market :

@hellbent posted these pics on D. F. I.
Bharat drone systems is an Indian drone making/marketing company founded by ex-servicemen. They have R&D facilities in Australia and US.
This I believe is the UAVOS UVH170 drone that they are marketing in India. Its not their own development.
Spec sheet :
Screenshot (713).png
Screenshot (714).png
This is another drone they are marketing :
Mortar fired drone.:eek:Bloody Brilliant.
Specs on the poster behind :

They also have a drone with turboprop engine in development. It has rail/drop launch capability for weapons. :

Here is what another drone maker is up to :
Screenshot (716).png
Screenshot (715).png

Another one :
Screenshot (717).png

Mortar fired drone.:eek:Bloody Brilliant.
Specs on the poster behind :
View attachment 13464

I saw a couple variations of mortar launched/tube-launched suicide UAVs during my time working for Kongsberg. Pretty cool concept. basically low cost expendable long-range mortar rounds. Cheaper on average then rocket assisted or GPS/laser guided mortar shells. Nice for bridging the gap between rocket artillery or ground launched loitering munitions (GL-SDB) and traditional gun mortars.

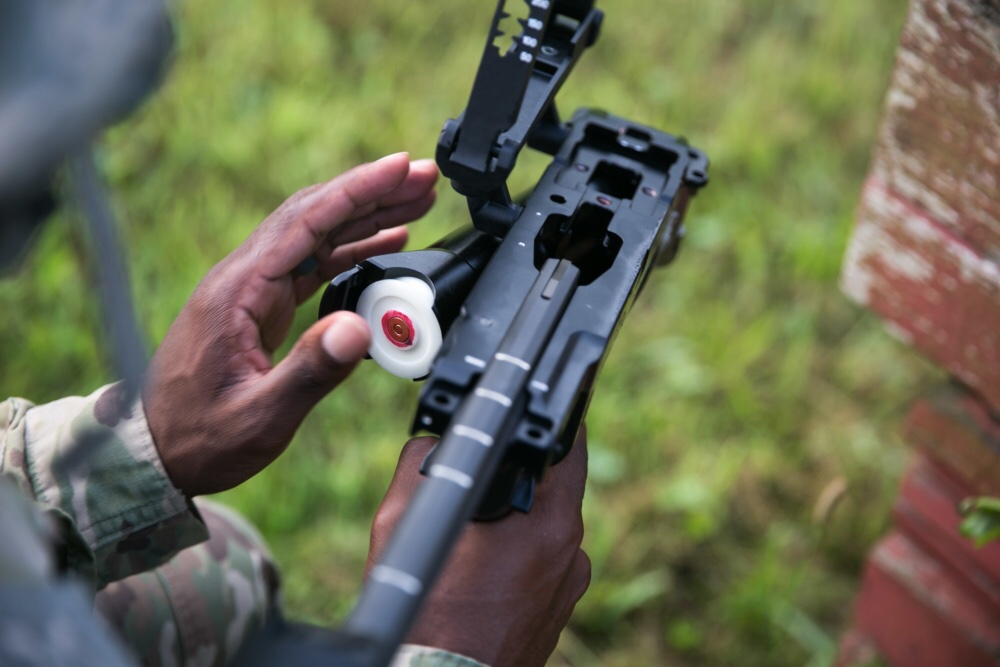

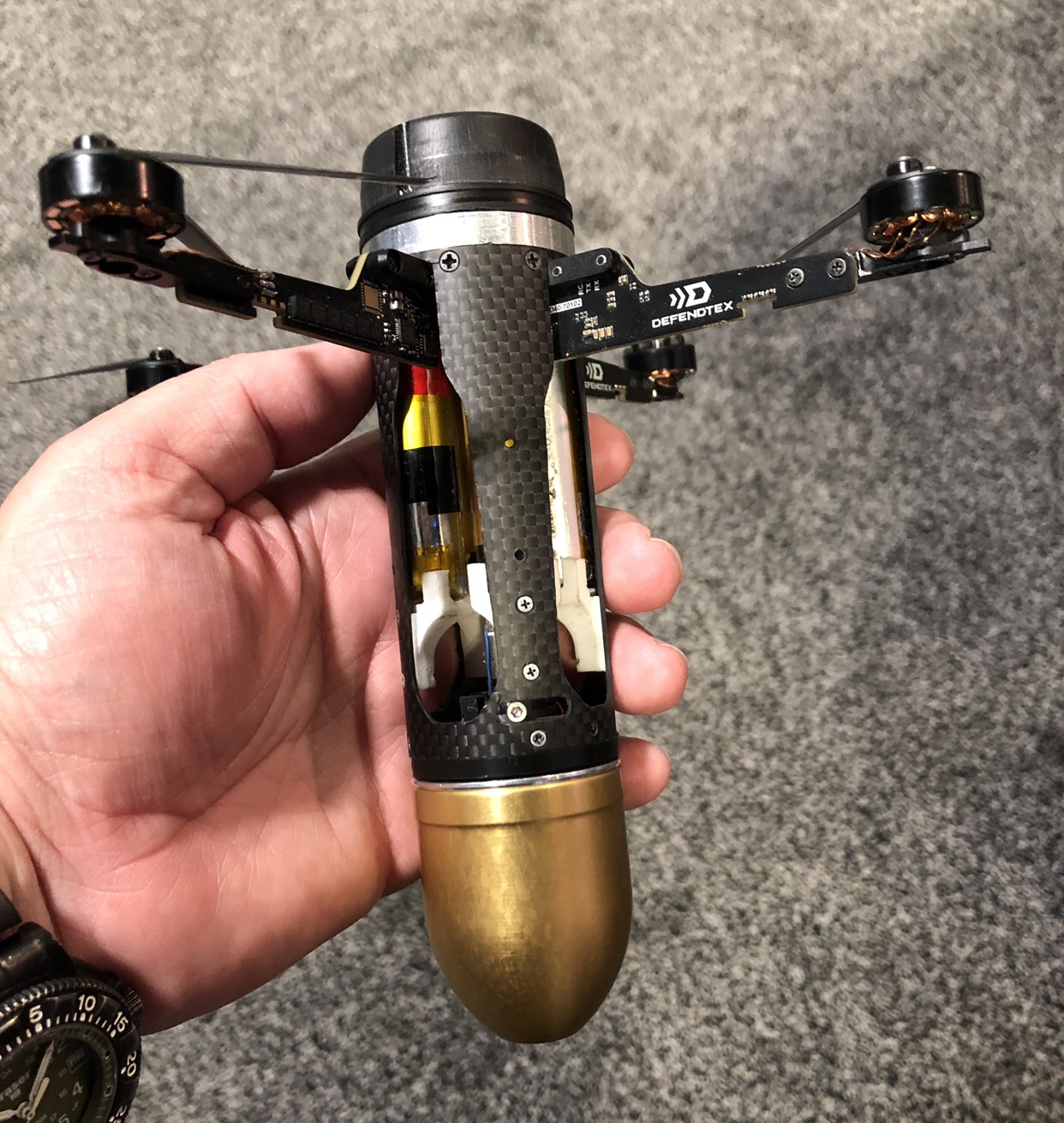

My personal favorite small tube-launched UAVs are 40mm suicide AUVs launched from any UBGL.





Imagine a GMG or Mk 19 packing a belt of theseo_O!

  • Like
Reactions: Gautam
I saw a couple variations of mortar launched/tube-launched suicide UAVs during my time working for Kongsberg. Pretty cool concept. basically low cost expendable long-range mortar rounds. Cheaper on average then rocket assisted or GPS/laser guided mortar shells. Nice for bridging the gap between rocket artillery or ground launched loitering munitions (GL-SDB) and traditional gun mortars.

My personal favorite small tube-launched UAVs are 40mm suicide AUVs launched from any UBGL.
Does the NATO use any of those yet ?
We don't have guided mortars or loitering munitions so this can be very useful to us.

Does the NATO use any of those yet ?

Laser and GPS guided mortar shells, able to hit moving vehicles at ranges of up to 12km have been in service with NATO militaries for almost two decades now. The American XM395 can hit within 2.2 meters and the Swedish Pansarsprängvinggranat m/94 is just as accurate. Most of these are larger 120mm shells.

Switchblade, a tube launched UAV and Coyote, tube or aerial through sonobuoy ejector racks, have been used extensively in Afghanistan by US and allied forces.



Poland has been one of the key drivers in NATO, introducing a number of low cost suicide UAVs including Dragonfly, which has been used operationally in Afghanistan by Polish SF. It's not tube-launched, but is a man portable loitering munition. Basically a 40mm grenade mated to a quad-copter.




In one form of another expendable tube-launched UAVs, loitering munitions and guided mortar shells have been in NATO service for a number of years now. Smaller systems are currently being developed for use on man-portable launchers like 81mm mortars and UBGLs. India isn't too far behind in that regard.

Last edited:
  • Informative
Reactions: Gautam

Indo-Israeli JV to Manufacture Loitering Munition

Our Bureau, 11:10 AM, January 29, 2020

Israeli UVision Air announced a joint venture with Indian Aditya Precitech to manufacture loitering munitions under the brand PALM (Precision Attack Loitering Munition) Hero Systems.

The JV, called AVision will explore various opportunities in India for Loitering Munitions Systems including the design, manufacture, sales, maintenance, support, upgrading, and lifecycle management. The partners will also maintain a supply of spare parts for the warranty and post-warranty periods for current and future versions of the smart munitions systems.

Commenting on the Joint Venture, Shane Cohen, VP Sales & Marketing at UVision and AVision Board Member, said, “We are very pleased to have partnered with Aditya, a highly respected company with extensive experience as development partner for many of India’s Defense Research and Development Organization’s (DRDO) most important projects”

Regarding this partnership, Aditya’s representative and Avision’s CEO, Col. (ret.) Anil Yadav, remarked, “We look forward to producing the full range of loitering munitions, which will be offered to India’s military, paramilitary forces as an effective response to multiple threats with minimal collateral damage.”

IndoIsraeli JV to Manufacture Loitering Munition

HAL to make advanced armed UAVs with Israeli Co

By Manu Pubby, ET Bureau | Last Updated: Feb 03, 2020, 08.43 AM IST

NEW DELHI: In a first, advanced Unmanned Combat Aerial Vehicles (UCAVs) will be manufactured in India, with leading aeronautical entity Hindustan Aeronautics Ltd (HAL) set to formalise a partnership with an Israeli firm that specializes in autonomous weaponry.

The advanced Heron TP, which belongs to the Medium Altitude Long Endurance (MALE) class with an endurance of over 36 hours, will be manufactured to cater both to Indian requirements for a combat UAV and possibly exports to third nations in the future as well.

HAL is set to sign a partnership pact with Israel Aerospace Industries (IAI) at the upcoming DefExpo 2020 in Lucknow this week, with estimates that in the Indian market alone, there is a requirement of at least 100 drones of this type. The Heron TP is an advanced version of the Heron UAVs that are currently in service with the three forces in a reconnaissance role.



HAL, which is India’s leading aeronautical company, is looking ahead to commence full production of the armed drones, its chairman and managing director R Madhavan confirmed to ET.

Details of the weaponry onboard are still not clear as the choice of payload is usually left to the user, which in this case would be the three armed forces. Given the flexibility displayed by Israel in joint collaborations in the past, Indian air-to-ground weapons could be integrated with the Heron TPs.

Once finalized, this would be the second range of Israeli UAVs to be made in India, with a joint plant by an Adani-Elbit combine also producing the unarmed Hermes 900 class of drones for export orders from Hyderabad.

The HAL chairman also told ET that the company is actively working on another project for a 200 kg class rotor wing UAV, which among other tasks, will be useful for dropping supplies to troops posted at high altitude areas like the Siachen glacier.

The under development UAV—work on sensors, payloads and other data links has been outsourced to institutions like the Indian Institute of Technology—is being designed specially to carry a 40 kg payload to high altitude areas.

This would drastically cut down supply time for vital loads like medicine and food that are currently transported by mules and are prone to high risk, given severe weather and the dangers of avalanches that have claimed numerous lives. Israel Aerospace Industries, which says that it has conducted business deals in India that totalled close to $ 5 billion in the past five years, will be showcasing its capabilities at the DefExpo in Lucknow.

In the past, IAI has sold multiple air defence systems to India, as well as the range of Heron UAVs.

HAL to make advanced armed UAVs with Israeli Co

HAL’s Unmanned Future: Slew Of DefExpo Partnerships Cements New Path

By Shiv Aroor, Feb 05 2020, 7: 02 pm

India’s state-owned Hindustan Aeronautics Ltd (HAL) has signaled its most aggressive business push towards unmanned air systems with a quick slew of partnerships forged on Day 1 of the Def Expo 2020 show in Lucknow, India. In a matter of hours today, HAL announced strategic arrangements with private sector firm Dynamatic Technologies to build and market Israeli conglomerate IAI’s drone family, including presumably advanced/armed versions of the in-service Heron UAS, a second partnership with Indian private firm New Space Research and Technologies to jointly develop and manufacture products and systems in the area of unmanned systems, swarm technology, and a third partnership with Israel’s Elbit Systems ISTAR Division to look at jointly developing an unmanned helicopter system for the Indian Navy.

To be sure, the memoranda of agreement signed by HAL today will be meaningful once they evolve into actual incorporated arrangements, but they bring into focus an imperative business direction that HAL has wisened up to. With orders to HAL for the manufacture of fighter aircraft already drying up, the company has evidently decided to put corporate heft into creating a full-fledged business division (it exists, but hasn’t done much so far) focused on quickly developing unmanned air systems to meet requirements across the capability spectrum from India’s armed, paramilitary and police services. For HAL, the move doesn’t just make business sense — it could also be a matter of survival in the decades ahead. For years the sole military airframer in the country, HAL has begun to feel the heat, with the Indian MoD deciding to create combat aircraft manufacturing capacity in the private sector for the first time.

HAL’s tie-up today with Elbit, for instance, is particularly significant (it actually signed two, the second for head-up displays). The Indian Navy’s need for a deck-based unmanned rotorcraft system like the Northrop Grumman MQ-8 Fire Scout has remained unfulfilled for years. In 2017, after a years-long joint effort with IAI to create the NRUAV, an unmanned rotorcraft based on the HAL-built Alouette III/Chetak helicopter platform, failed to produce a usable product, HAL signaled it would be rebooting the effort with a new partner. It’s MoU with Elbit today is a culmination of that effort. It is unclear if the proposed project will involve the Chetak or a different helicopter platform like, perhaps HAL’s own Light Utility Helicopter (LUH).


In a statement announcing the partnership with Elbit, HAL said, “The proposed VTOL UAVs have a tremendous potential in carrying out maritime military missions with higher efficiency compared to a manned helicopter. Deploying a VTOL UAV will bring down the huge costs associated with inducting operating and maintaining manned helicopters on the deck. It will also benefit the Indian Armed Forces in deploying a VTOL UAV for a routine surveillance mission or operating in unsafe areas both during day and night, which otherwise would have to be carried out by manned helicopters. It may also open up new business avenues for HAL culminating in both domestic and export orders.”

HAL’s tie-up with Dynamatic Technologies to look at building Israel Aerospace Industries (IAI) family of drones in India is equally significant. Apart from the depot-level maintenance that HAL provides to the Heron and Searcher Mk.II drones operated by the Indian armed forces, HAL has dabbled with license manufacturing tactical mini-UAS systems like the Elbit Skylark in India with limited or no real success. Today’s agreement with Dynamatic Tech, already a well-regarded global single source supplier to top military airframers across the world, signals significantly expanded scope and ambition — way beyond the small drones HAL was looking to hawk earlier.


HAL’s interest in building and marketing IAI’s larger drones in India will be the second such partnership in the country. Indian private conglomerate, the Adani Group, has been building up its own partnership with Israel’s Elbit Systems to build and market the Hermes family of high performance drones for the Indian armed forces and export. In 2018, Adani announced the inauguration of India’s first private UAV manufacturing facility in Hyderabad, Telangana where it hopes to build the Hermes 900, and has already begun making aero-structures for both the Hermes 900 & 450.

HAL’s first prominent steps towards an unmanned future were visible at the Aero India show in Bengaluru last year. Not only did the company unveil a 200-kg unmanned helicopter concept, the RUAV (the title picture to this post), but also a far more ambitious and meaningful endeavour, the Unmanned Wingman UCAV, in partnership with a private sector start-up firm. It’s new partnership today with New Space Research and Technologies signals a spread into this area in a substantive way.


In 2018, HAL entered into a three-way agreement with Boeing Defense and the Mahindra Group to support the F/A-18 Super Hornet pitch in an upcoming Indian constest to build 114 jets in India. Alongside ongoing manufacture of the LCA Tejas and a likely additional handful of Su-30 MKI assemblies, HAL’s manned aircraft future is more than just uncertain. With India’s requirement for unmanned air systems only likely to expand and become more well-defined, HAL’s pronounced steps in the domain provide perhaps the most significant proactive step by a legacy firm.

The Indian private sector has already taken several steps in the UAS space, and the Def Expo show has already seen significant updates. After the Tata Group and Mahindra Group, the Kalyani Group yesterday announced that it would be investing in the UAS field ‘aimed towards self-reliance in the field‘.

HAL’s Unmanned Future: Slew Of DefExpo Partnerships Cements New Path


Attachments

  • DSC_2024-1.jpg
    29.8 KB · Views: 328
  • B-NQQH-CQAAl_Vm-1536x1152.jpg
    182.5 KB · Views: 334
  • Informative
Reactions: _Anonymous_
I've avoided putting it out until now. But since mainstream media is reporting on it, I suppose its "official".

Swarms Of Indian Drones Being Designed To Take Out Targets Like Balakot


View attachment 8048View attachment 8049

If I am to break down the infomation from the photos posted by the HAL test pilot, here's what I got :

The "CATS" here stands for Combat Air-Teaming Systems. Apparently its a ongoing program within HAL along with NewSpace which seeks to build/modify aircrafts and munitions in a way that they work as a team. Basically what the USAF would call sensor fusion along with the ability of sharing targeting/surveillance data in real time.

The "ALFA" is the name of a drone that NewSpace Research and Technologies is working with HAL named Air-Launched Flexible Asset-Swarm(ALFA-S)
View attachment 8050
The "NGCCM" means Next Generation Close Combat Missile. The missile look like a MBDA ASRAAM, which makes sense given the air force wants it as the standard CCM for the entire fleet.
View attachment 8052
The ALFA-S drones are carried in flight by an aerodynamic cowl to reduce drag in forward flight. This cowl is very similar to the one HAL Tejas uses albeit for much smaller payloads.
View attachment 8051

Also there seems to be a recce pod under the belly of the HAWK-i(marked by a red arrow). that is probably a RAFAEL Recce Lite as carried by the Tejas in the pic above.

Over all this seems very much an achievable task, everything we need is available. Only the ALFA-S drones need to be built. Flying the drones will be the easy part, prototypes were displayed during AeroIndia 2019. The AI software needed for the drones is the difficult part. We've traditionally always been strong in software domain, but its HAL so you never know.
View attachment 8053

Oh and here is him and his buddies flying prototypes in formation :

Remember this post above?

Here you have Mudi kaka and Ninda turtle standing along with the latest version of the NewSpace ALFA-S drone. There is a lot going on with this project behind the scenes. HAL and Newspace today signed a Non disclosure agreement regarding the development of drones.
