Ukraine to test components of a powerful Indian rocket engine
The Yuzhmash production plant in Ukraine prepares to begin a series of firings testing critical parts of a large rocket engine intended for India's next-generation heavy launcher. Although it was built entirely in India, the prospective engine was originally designed in Ukraine under designation RD-810.
Developing RD-810
The RD-810 was developed at KB Yuzhnoe in today's city of Dnipro, Ukraine, as an equivalent of the Russian RD-191 engine, but using a more conservative engineering approach. Like the RD-191, this one-chamber engine with a thrust of around 200 tons, was intended for the first stage of a new-generation space launcher, however it was designed to operate at a lower, and thus safer, internal pressure than that accepted in its Russian counterpart.
The propulsion division at KB Yuzhnoe was able to take on the project of such a scale and complexity thanks to its most recent experience with the engines for the second stage of the Zenit rocket, including the RD-120 and RD-8.
The RD-810 belongs to the so-called staged combustion cycle engines, which first ignite their propellant mix inside a special gas generator (also known as pre-burner). The resulting hot gas is used to drive the engine's turbine and then it is directed into the main combustion chamber.
The RD-810 was designed for a single firing during the operation of a typical first stage, starting on the ground and lasting slightly more than two minutes. The engine could operate in two modes: burning at full thrust for 135 seconds and then switching to a lower thrust for the final six seconds before the separation of the first stage. (809)

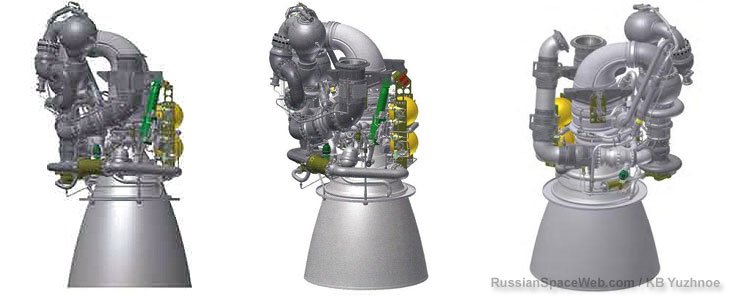

In the course of its development, several versions of the RD-810 were designed, with the main difference being its gimbal mechanism with either one- or two-axis steering.
Foreign roles for RD-810
Over the years, various roles were proposed for RD-810, including replacing the Russian RD-171 on the Ukrainian-built Zenit rocket and propelling Ukraine's new-generation Mayak launcher. A four-engine cluster, dubbed RD-810M, was designed to fit into the aft section of a potential space booster with a diameter 3.9 meters, matching the caliber of the Zenit rocket. Each RD-810 was expected to gimbal up to six degrees around one axis, allowing the four-engine cluster to fully steer the rocket.
Because none of the indigenous programs could be adequately funded, Ukraine sought to bring the RD-810 design to the international market. Along with several other Ukrainian designs, the RD-810 was proposed for the American super-heavy rocket developed under the Space Launch System, SLS, program. However, despite qualifying RD-810 as in high degree of readiness, American space officials did not seriously consider Ukrainian engines for the SLS project.
Indian version
In 2005, Ukraine agreed to provide India with designs for the RD-810 engine and, on Nov. 20, 2006, the Indian Space Research Organization, ISRO, awarded a contract to KB Yuzhnoe for a project code-named Jasmine, which officially started the development of the RD-810. In India, the RD-810-based engine was dubbed SCE-200, which stood for "semi-cryogenic," indicating the use of kerosene fuel, which can be stored at regular temperatures, and liquid oxygen, which requires cryogenic conditions to stay in liquid form. The "200" in the designation denoted its thrust of 200 tons.
ISRO planned to install the SCE-200 engine on the modified core stage of the GSLV Mark 3 rocket replacing the older propulsion system. It would boost the payload capacity of the rocket to the geostationary transfer orbit from four to six tons. Later, four similar engines could propel a new-generation rocket, which could deliver up to 10 tons to the same orbit without the help of strap-on boosters.
In addition to assisting with the design of the engine, KB Yuzhnoe also advised ISRO on the development of the prospective launch vehicle itself.
RD-810 for Antares
In September 2013, KB Yuzhnoe proposed the RD-810 engine for the US Antares rocket developed at Orbital ATK. The company promised to begin deliveries of the engine in 5.5 years at a price tug of $500 million. However, Orbital chose the Russian RD-181 engine for the project.
As of 2014, KB Yuzhnoe had produced the full set of design documentation required for the production and testing of the RD-810 engine. (809) According to industry sources, India then re-issued the blueprints for the engine according to its own standards and, possibly, introduced some modifications.
In the meantime, KB Yuzhnoe decided to stop further development of the RD-810 engine inside Ukraine, focusing instead its limited resources on the more powerful RD-815 design, which could potentially be promising on the US market.
Testing RD-810
In 2017, Indian specialists returned to Ukraine to test fire the actual hardware, which had been built in India within the Jasmine project. According to industry sources, the Ukrainian Yuzhmash factory was contracted to test, not the entire engine, but its critical components, including its gas generator and a turbopump, which had all been manufactured in India. If the firings, apparently planned to be completed by 2019, validated the quality of the Indian manufacturing methods, the fully assembled engine, including the combustion chamber and the nozzle, would be tested at the yet-to-be completed bench facility at Mahendragiri, India.
The Yuzhmash production plant in Ukraine prepares to begin a series of firings testing critical parts of a large rocket engine intended for India's next-generation heavy launcher. Although it was built entirely in India, the prospective engine was originally designed in Ukraine under designation RD-810.
Developing RD-810
The RD-810 was developed at KB Yuzhnoe in today's city of Dnipro, Ukraine, as an equivalent of the Russian RD-191 engine, but using a more conservative engineering approach. Like the RD-191, this one-chamber engine with a thrust of around 200 tons, was intended for the first stage of a new-generation space launcher, however it was designed to operate at a lower, and thus safer, internal pressure than that accepted in its Russian counterpart.
The propulsion division at KB Yuzhnoe was able to take on the project of such a scale and complexity thanks to its most recent experience with the engines for the second stage of the Zenit rocket, including the RD-120 and RD-8.
The RD-810 belongs to the so-called staged combustion cycle engines, which first ignite their propellant mix inside a special gas generator (also known as pre-burner). The resulting hot gas is used to drive the engine's turbine and then it is directed into the main combustion chamber.
The RD-810 was designed for a single firing during the operation of a typical first stage, starting on the ground and lasting slightly more than two minutes. The engine could operate in two modes: burning at full thrust for 135 seconds and then switching to a lower thrust for the final six seconds before the separation of the first stage. (809)
In the course of its development, several versions of the RD-810 were designed, with the main difference being its gimbal mechanism with either one- or two-axis steering.
Foreign roles for RD-810
Over the years, various roles were proposed for RD-810, including replacing the Russian RD-171 on the Ukrainian-built Zenit rocket and propelling Ukraine's new-generation Mayak launcher. A four-engine cluster, dubbed RD-810M, was designed to fit into the aft section of a potential space booster with a diameter 3.9 meters, matching the caliber of the Zenit rocket. Each RD-810 was expected to gimbal up to six degrees around one axis, allowing the four-engine cluster to fully steer the rocket.
Because none of the indigenous programs could be adequately funded, Ukraine sought to bring the RD-810 design to the international market. Along with several other Ukrainian designs, the RD-810 was proposed for the American super-heavy rocket developed under the Space Launch System, SLS, program. However, despite qualifying RD-810 as in high degree of readiness, American space officials did not seriously consider Ukrainian engines for the SLS project.
Indian version
In 2005, Ukraine agreed to provide India with designs for the RD-810 engine and, on Nov. 20, 2006, the Indian Space Research Organization, ISRO, awarded a contract to KB Yuzhnoe for a project code-named Jasmine, which officially started the development of the RD-810. In India, the RD-810-based engine was dubbed SCE-200, which stood for "semi-cryogenic," indicating the use of kerosene fuel, which can be stored at regular temperatures, and liquid oxygen, which requires cryogenic conditions to stay in liquid form. The "200" in the designation denoted its thrust of 200 tons.
ISRO planned to install the SCE-200 engine on the modified core stage of the GSLV Mark 3 rocket replacing the older propulsion system. It would boost the payload capacity of the rocket to the geostationary transfer orbit from four to six tons. Later, four similar engines could propel a new-generation rocket, which could deliver up to 10 tons to the same orbit without the help of strap-on boosters.
In addition to assisting with the design of the engine, KB Yuzhnoe also advised ISRO on the development of the prospective launch vehicle itself.
RD-810 for Antares
In September 2013, KB Yuzhnoe proposed the RD-810 engine for the US Antares rocket developed at Orbital ATK. The company promised to begin deliveries of the engine in 5.5 years at a price tug of $500 million. However, Orbital chose the Russian RD-181 engine for the project.
As of 2014, KB Yuzhnoe had produced the full set of design documentation required for the production and testing of the RD-810 engine. (809) According to industry sources, India then re-issued the blueprints for the engine according to its own standards and, possibly, introduced some modifications.
In the meantime, KB Yuzhnoe decided to stop further development of the RD-810 engine inside Ukraine, focusing instead its limited resources on the more powerful RD-815 design, which could potentially be promising on the US market.
Testing RD-810
In 2017, Indian specialists returned to Ukraine to test fire the actual hardware, which had been built in India within the Jasmine project. According to industry sources, the Ukrainian Yuzhmash factory was contracted to test, not the entire engine, but its critical components, including its gas generator and a turbopump, which had all been manufactured in India. If the firings, apparently planned to be completed by 2019, validated the quality of the Indian manufacturing methods, the fully assembled engine, including the combustion chamber and the nozzle, would be tested at the yet-to-be completed bench facility at Mahendragiri, India.
AstroSat Picture of the Month (March 2018)
The Ultraviolet Tails of the “Atoms for Peace” galaxy
Dissecting star-formation in the “Atoms for Peace” galaxy
Image credit: Koshy George et.al.
The Ultraviolet Tails of the “Atoms for Peace” galaxy
Dissecting star-formation in the “Atoms for Peace” galaxy
Image credit: Koshy George et.al.
A billion years ago, two massive galaxies collided together, ripping apart tails of gas and dust from each other. The two galaxies then merged to form a single galaxy, NGC 7252. Located 220 million light years away in the southern constellation of Aquarius, the optical images show stars and gas twirling around in intricate filaments around a bright central core. These loops resemble a picture of electrons going around the nucleus, and hence NGC 7252 was named 'Atoms for peace' galaxy, in honour of the influential speech by the US President Eisenhower in 1961, where he advocated the use of nuclear energy for peaceful purposes.
The effects of the violent collision are evident from the furious star forming activity going on in the two tails of the galaxies. These tails of gas and stars were pulled out from the galaxies in their dance around each other before their merger. Since ultraviolet light traces young hot stars, Koshy George and his collaborators used the Ultraviolet Imaging Telescope (UVIT) of AstroSat to trace the locations of ongoing star formation along the tidal tails. Using their data, they were able to measure the rate at which new stars are being formed, and study how this rate changes as we move along this tail.
These studies have been published in this paper.
([1802.09493] Dissecting star-formation in the "Atoms-for-Peace" galaxy: Ultra-Violet Imaging Telescope observations of the post-merger galaxy NGC7252)
AstroSat Picture of the Month (March 2018) - ISRO
ISRO is gearing up for PSLV - C41/IRNSS-1l Mission on 12th April at 04:04 IST.
some images of the mission from ISRO:
IRNSS-1I Spacecraft is being Integrated with PSLV-C41
some images of the mission from ISRO:
IRNSS-1I Spacecraft is being Integrated with PSLV-C41
Credit: ISRO
Strap-on Motors are being Integrated with PSLV-C41 Core Stage at Vehicle Assembly Building
Strap-on Motors are being Integrated with PSLV-C41 Core Stage at Vehicle Assembly Building
Credit: ISRO
IRNSS-1I being loaded into the Large Space Simulation Chamber for Thermal Vacuum test
IRNSS-1I being loaded into the Large Space Simulation Chamber for Thermal Vacuum test
